NV-CENTRE CONFOCAL MICROSCOPY | Low Temperature Microscope

LT-SCM works by passing a laser beam through a light source aperture which is focused by an objective lens into a small area on the surface of the sample and an image is built up pixel-by-pixel by collecting the emitted photons from sample surface.

Thank you for downloading

NV-CENTRE CONFOCAL MICROSCOPY
Scanning Confocal Microscope – NV Center

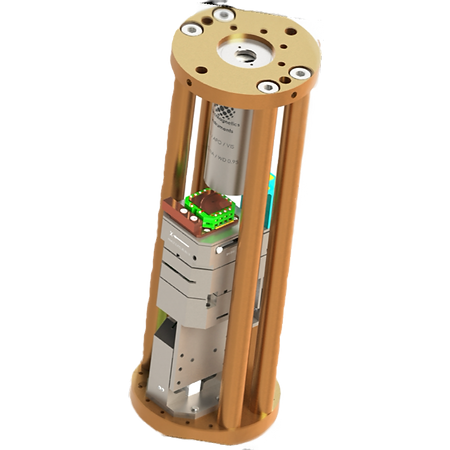

NanoMagnetics Instruments LT-SCM with NV-Center


LT-SCM works by passing a laser beam through a light source aperture which is focused by an objective lens into a small area on the surface of the sample and an image is built up pixel-by-pixel by collecting the emitted photons from sample surface. LT-SCM provides a high-resolution image with all areas in focus throughout the field of view, even for a sample having dents and protrusions on the surface. It enables the non-contact and non-destructive measurements at variable temperatures.


Product Specifications

  • High NA APO Objective, 0.82NA / 0.95mm

  • 532nm, SLM 10mW Laser

  • 30x30x15μm Scan area @4K

  • 49mm Outer Diameter

  • 10mK to 300K temperature range

  • APD for optical detection

  • 8 pin connections for experiments

  • 6x6x12mm Range XYZ Sample Nanopositioner

  • 4x4x6mm Range XYZ Nanopositioner for NV/QTF Sensor

  • 200nm resolution resistive position sensors

  • State of the Art Ultra Low Noise FPGA Based

  • AFM Controller with High speed USB interface

  • 32 Bit Real time Processor with 128MB DDR SDRAM

  • 2 Channel 16Bit/100MHz ADC

  • 2 Channel 16Bit/100MHz DAC

  • 7 Digital PID Loops on FPGA

  • 19 Channel Piezo Nanopositioner Controller

  • 16 Channel 24Bit/175kHz ADC

  • 24 Bit DACs for XYZ Scan Signals

  • Low Noise High Voltage Amplifiers
